ABSG / A1B2-2 Single Hole Solderless Lugs

Click to enlarge

ABSG / A1B2-2 Single Hole Solderless Lugs

[ABSG / A1B2-2]

Single Hole Solderless Lugs

TYPE: ABSG/A1B2-2

The unique ridges formed on the bottom of the contact surface are designed to provide contact points for an electrically secure joint of the lowest resistance for current flow. The screws used to clamp the conductors are designed to extend beyond the barrel sides of the conductor to allow a better, more secure compression of the conductor. This design spreads the conductor strands to help dissipate heat, and improve its pull-out safety features and capabilities. The design of the wire way provides optimum transfer of current, creating a straight line flow through the connector for the least possible path of electrical resistance. A positive wire stop is also provided.

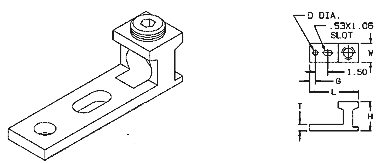

Catalog Number	Fig. No.	Screw Type	Cond. Range AWG		Dimensions, Inches
Catalog Number	Fig. No.	Screw Type	Cond. Range AWG		H	W	L	G	D*	T
ABSG-350	1	.31H	350 - 4		1.18	1.25	4.68	0.72	0.56	0.25
ABSG-500	1	.38H	500 - 4		1.44	1.25	4.68	0.72	0.56	0.31
ABSG-750	1	.38H	750 - 300		1.94	1.62	6.18	0.72	0.56	0.44
ABSG-1000	1	.50H	1000 - 350		1.94	1.62	6.18	0.72	0.56	0.44

A1B2-350-2	2	.31H	350 - 6		1.18	1.12	5.38	0.63	0.56	0.25
A1B2-500-2	2	.38H	500 - 4		1.43	1.25	5.5	0.63	0.56	0.31
A1B2-600-2	2	.38H	600 - 2		1.56	1.5	5.62	0.63	0.56	0.38
A1B2-750-2	2	.38H	750 - 1/0		1.94	1.5	6.18	0.63	0.56	0.44
A1B2-1000-2	2	.50H	1000 - 500		1.94	1.62	6.18	0.63	0.56	0.44

Available Options:
