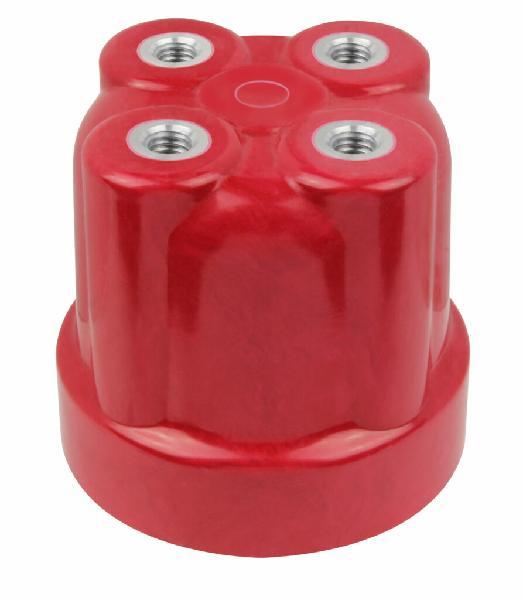

GINS-4610 STANDOFF ELECTRICAL INSULATOR

• Part Name: GINS-4610 Stand Off Series

• Material: UL-approved Glass Polyester BMC with Aluminum inserts (can also be brass or steel).

• Dimensions:

  • Height: 3.5" (88.9 mm)

  • Diameter: 3.5" (88.9 mm)

  • Radius of curvature (typ): R.630 (16.00 mm), R.125 (3.18 mm), R.063 (1.60 mm), R.188 (4.76 mm)

Threaded Insert Configuration:

• Thread Sizes:

  • Imperial: 3/8-16 x 11/16 deep (depth: 0.669" to 0.787")

  • Metric: M10-1.5 x 17 deep (depth: 20 mm)

• Number of Inserts:

  • GINS-4610-15: 2 top, 4 bottom

  • GINS-4610-81: 4 top, 4 bottom

  • GINS-4610-M15: 2 top, 4 bottom

  • GINS-4610-M81: 4 top, 4 bottom

• Insert Materials:

  • Aluminum (standard)

  • Brass (suffix -B)

  • Steel (suffix -S)
